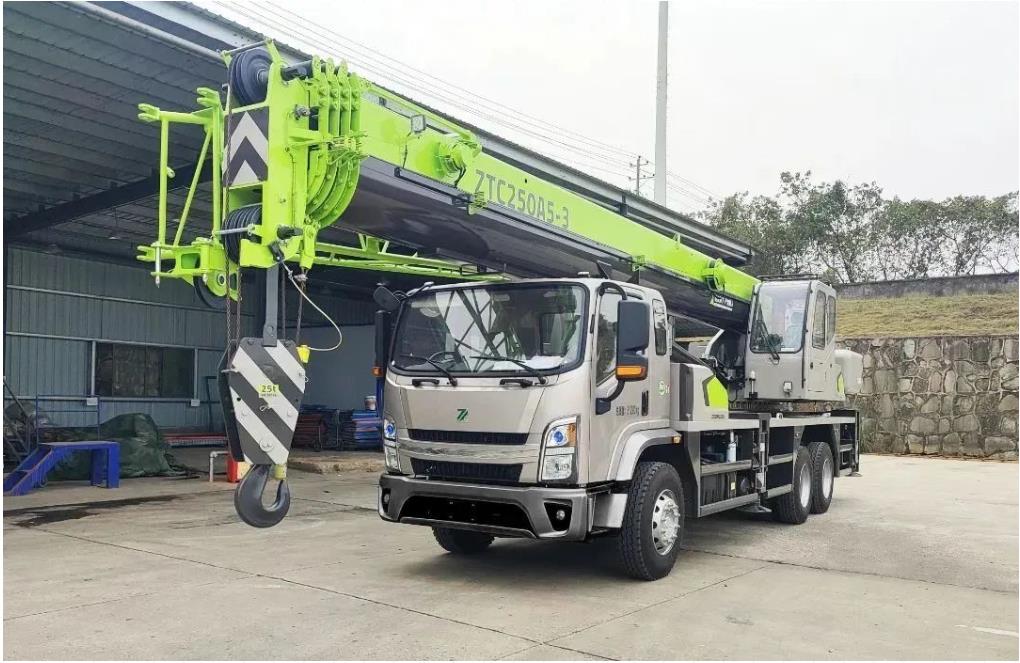

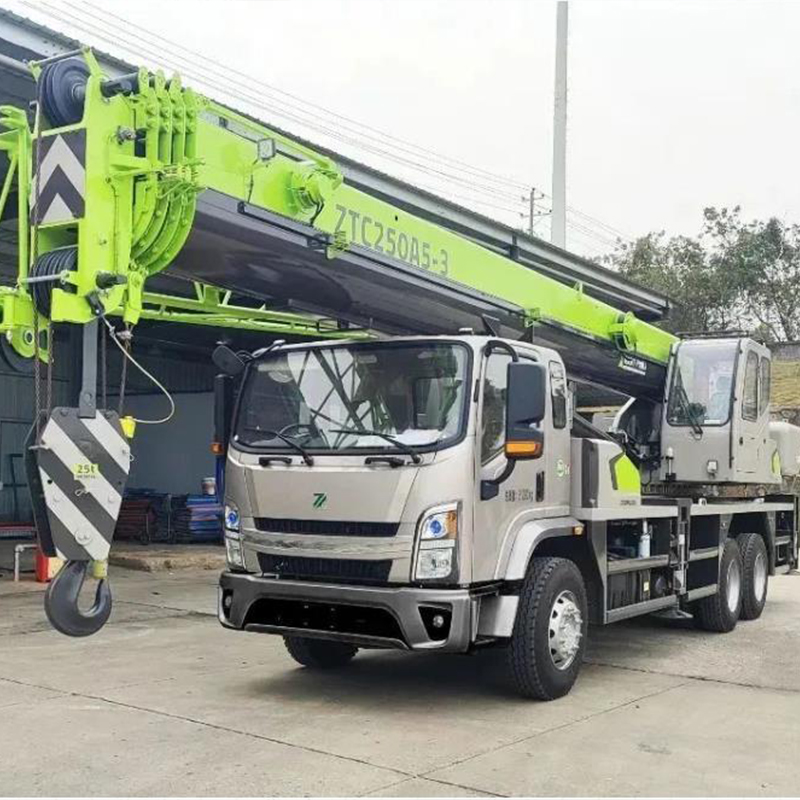

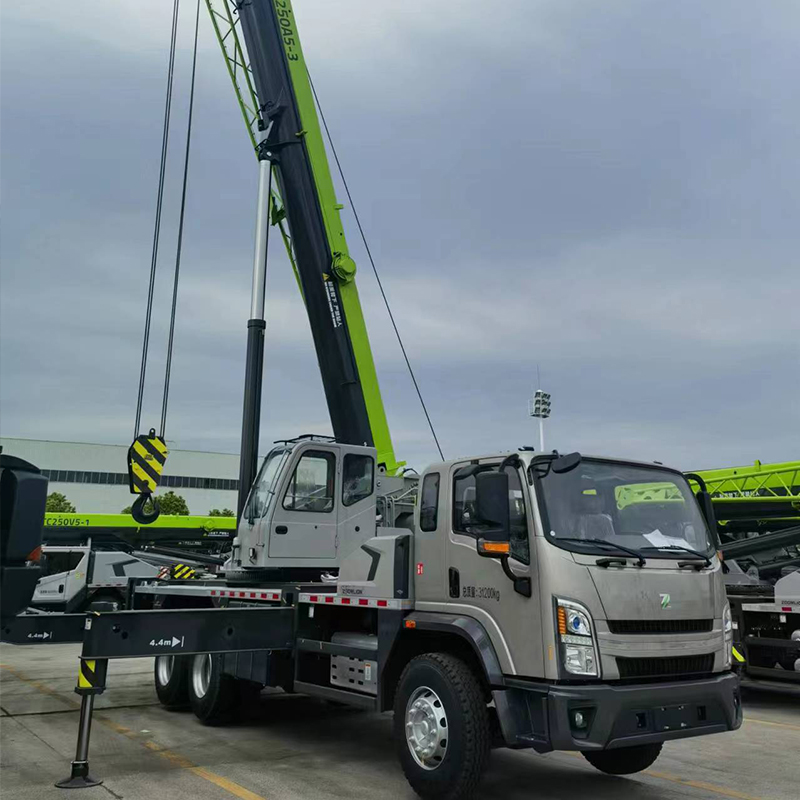

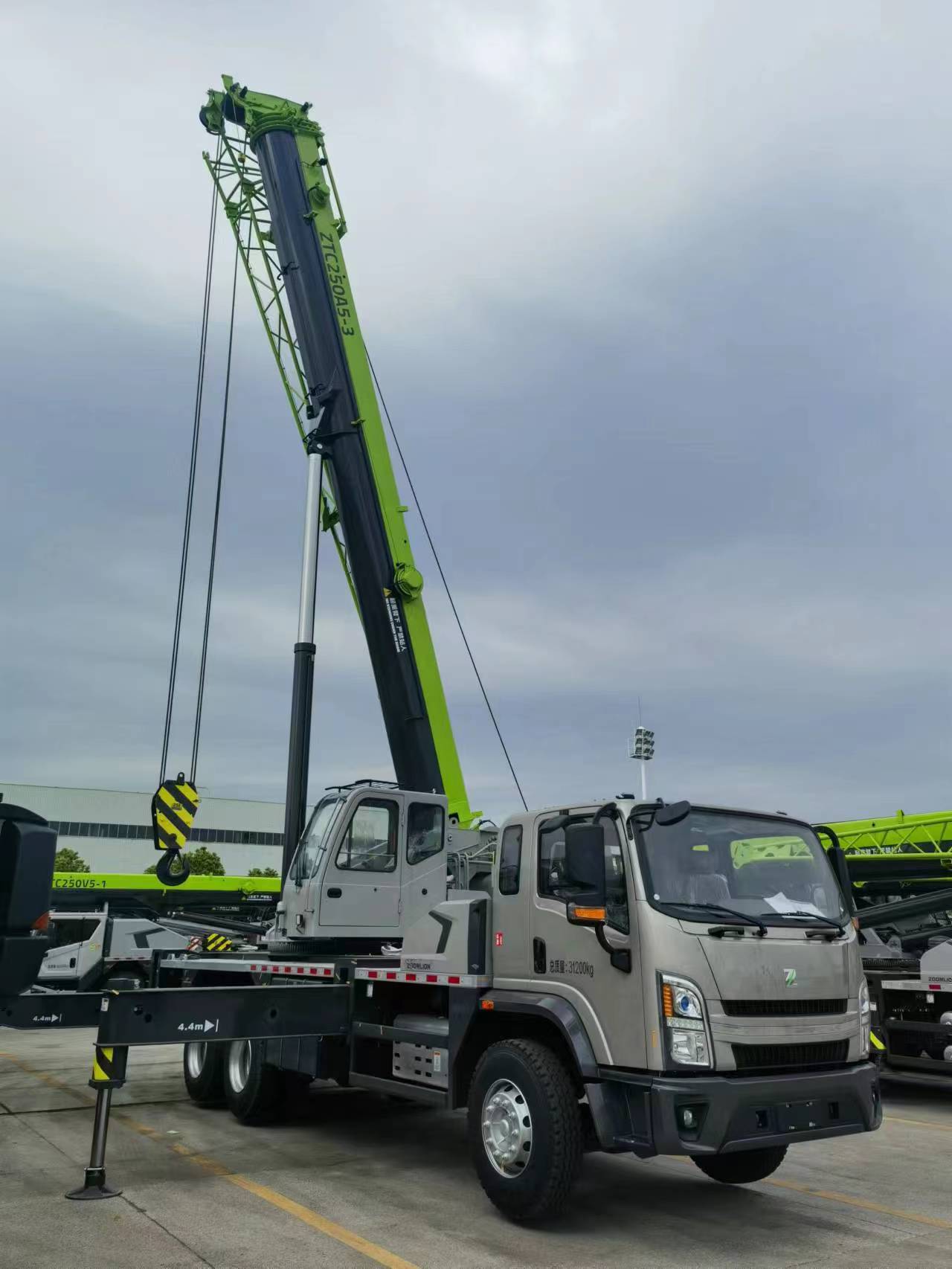

ZTC250A562 ZOOMLION Truck Crane

Short Description:

25t truck crane, 41m large-section boom, 125mL large-displacement high-pressure variable pump, Yu chai 6L engine + 9-speed synchronous gearbox, fuel consumption 26L per 100km.

Send email to us

Product Detail

Product Tags

Parameter Specification

Model NO.	ZTC250A562	Certification	GS, RoHS, CE, ISO9001
Condition	New	Maximum Lifting Height	>40m
Maximum Lifting Weight	>16t	Shaft Number	3
Crane Jib	Four-Arm	Type	Straight Arm
Operating Weight	25000kg	Overall Weight	30000kg
Rated Power	213kw/2100r/Min	Min. Turning Radius of Boom Head	12 M
Overall Length	12750mm	Max. Gradeability	38%
Min. Lifting Radius	3m	Length-Full-Extend Boom+Jib	41.5m
Length-Base Boom	10.65m	Rated Torque	1050n·m/1200~1400r/Min
Min. Turning Radius	10m	Emission Standard	Euro 3
Transport Package	Nude Package	Specification	25ton
Origin	Hunan, China	HS Code	8429521200

Key Features

› Continuously overall promotion makes our lifting capacity of crane be improved once and once again.
› Jib length 8.0m, Main boom length (10.6 – 40.0m).
› Optimized central slewing position increases the lifting capacity of the crane over rear.
› Large outrigger span improves the working stability of the crane greatly.
› Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.
› Leading boom manufacturing process in trade.
✓ High-strength U-shaped cross section boom.
✓ Luffing telescopic operation controlled independently by advanced post-compensate hydraulic technology.
✓ Ultra-long outrigger span ensures increasing stability.
✓ Effective mirror and rear view camera combinations improve overall visibility.

Applications

With its four-arm crane jib and straight arm configuration, the ZTC250A562-3.1 offers exceptional reach and stability, making it suitable for operations in tight spaces and challenging terrains. Whether you’re working on a large-scale commercial development, a residential construction site, or a remote infrastructure project, the ZTC250A562-3.1 truck-mounted crane is a reliable and efficient solution for your heavy lifting needs.
