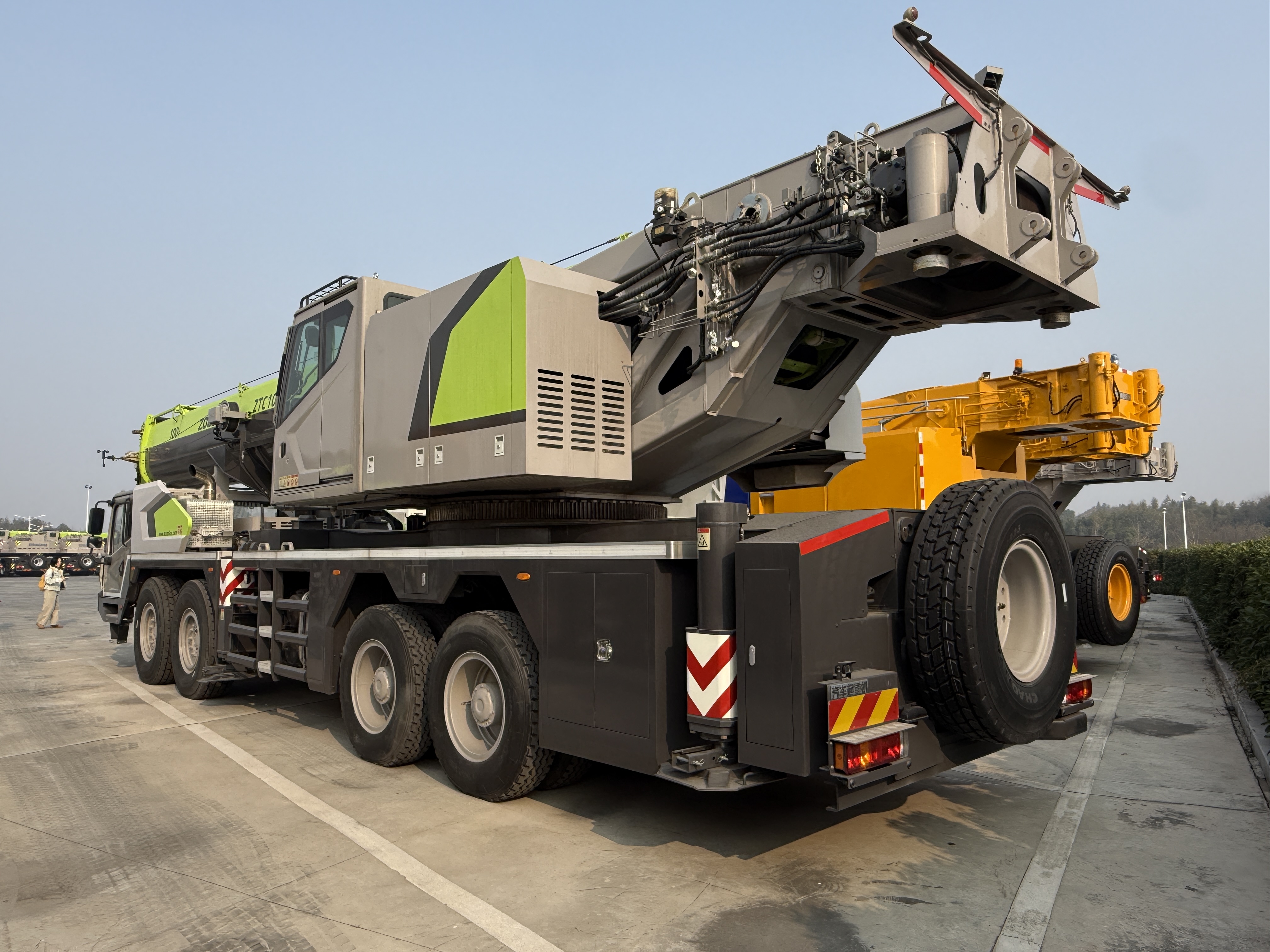

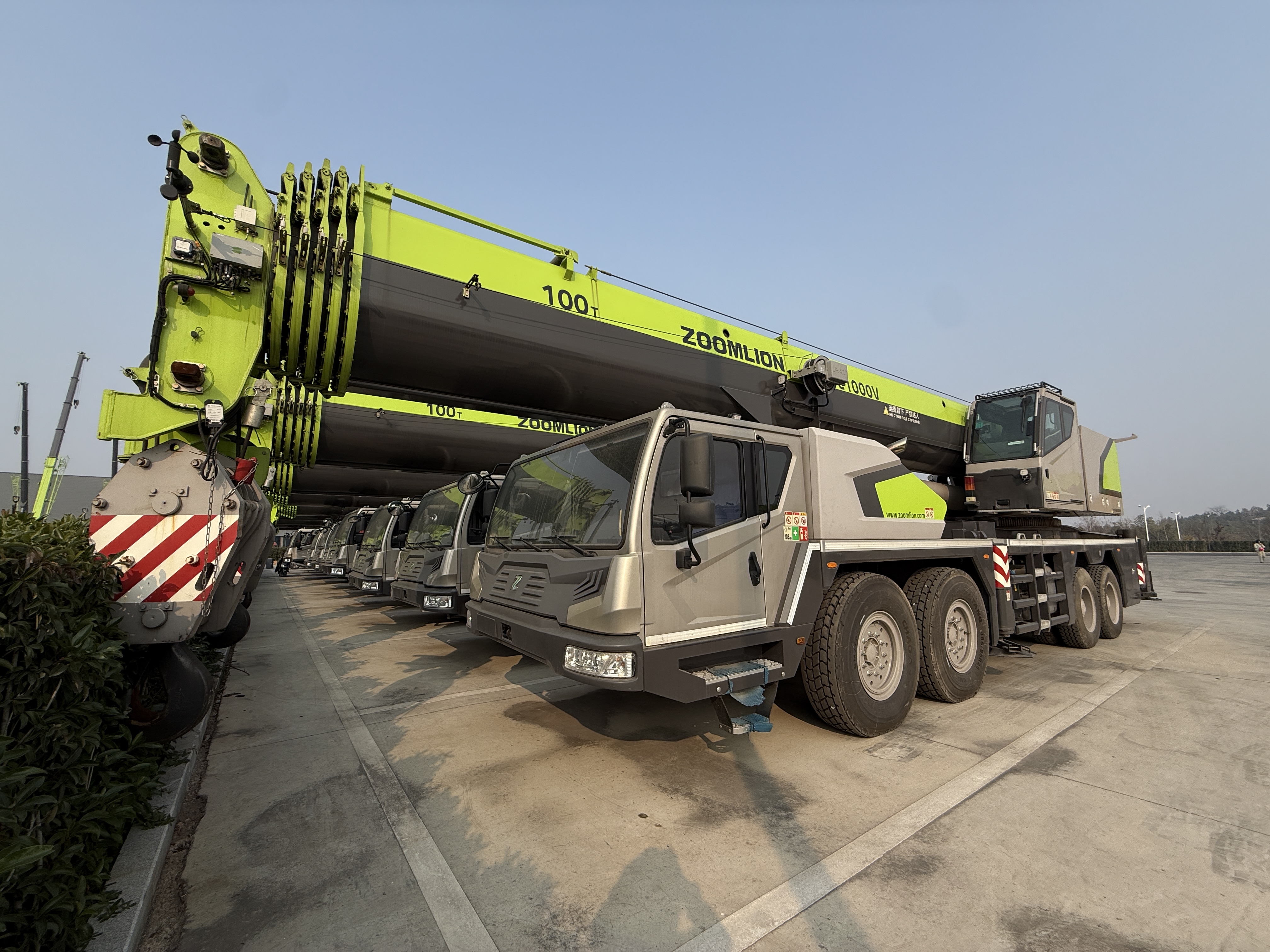

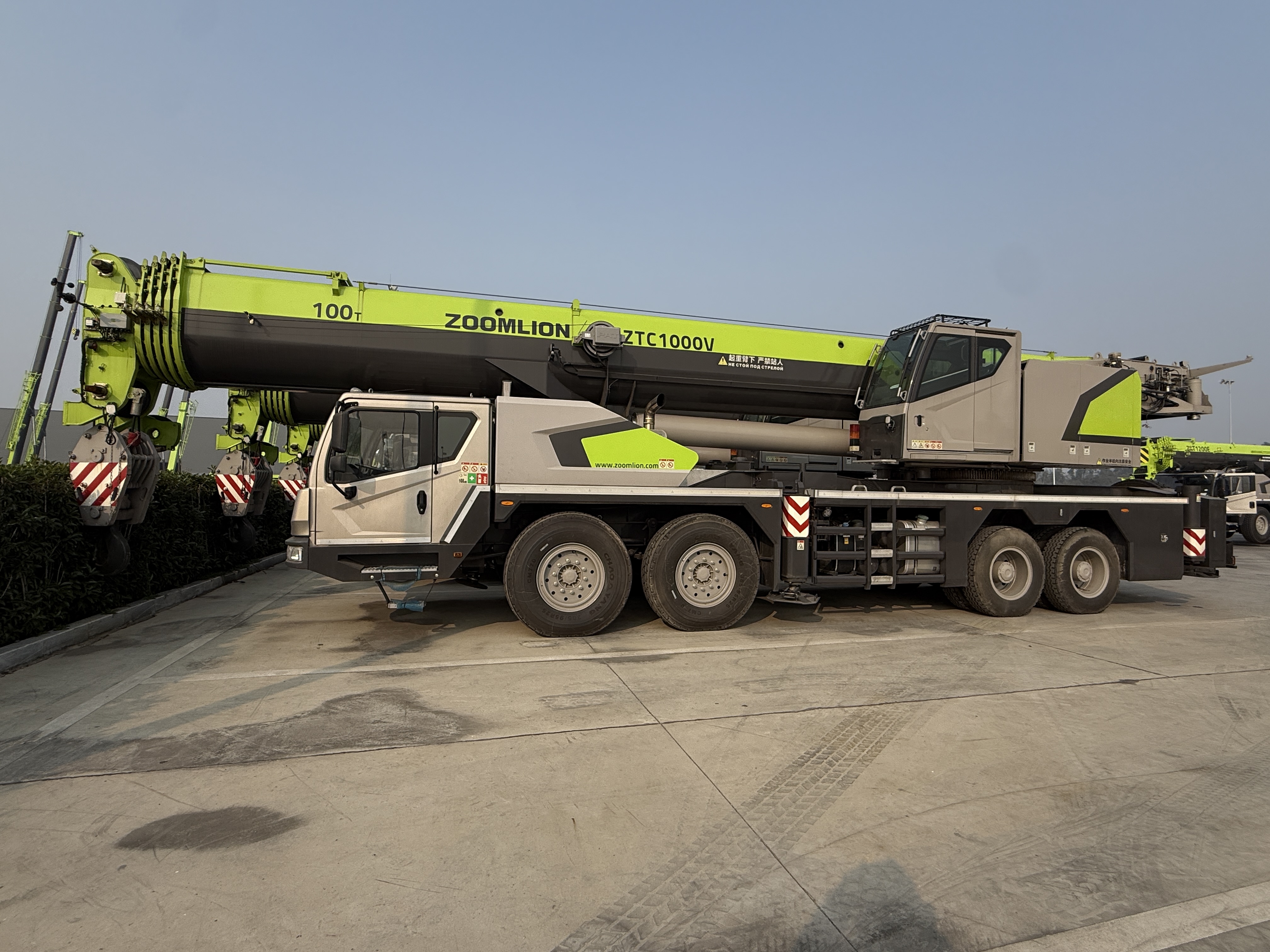

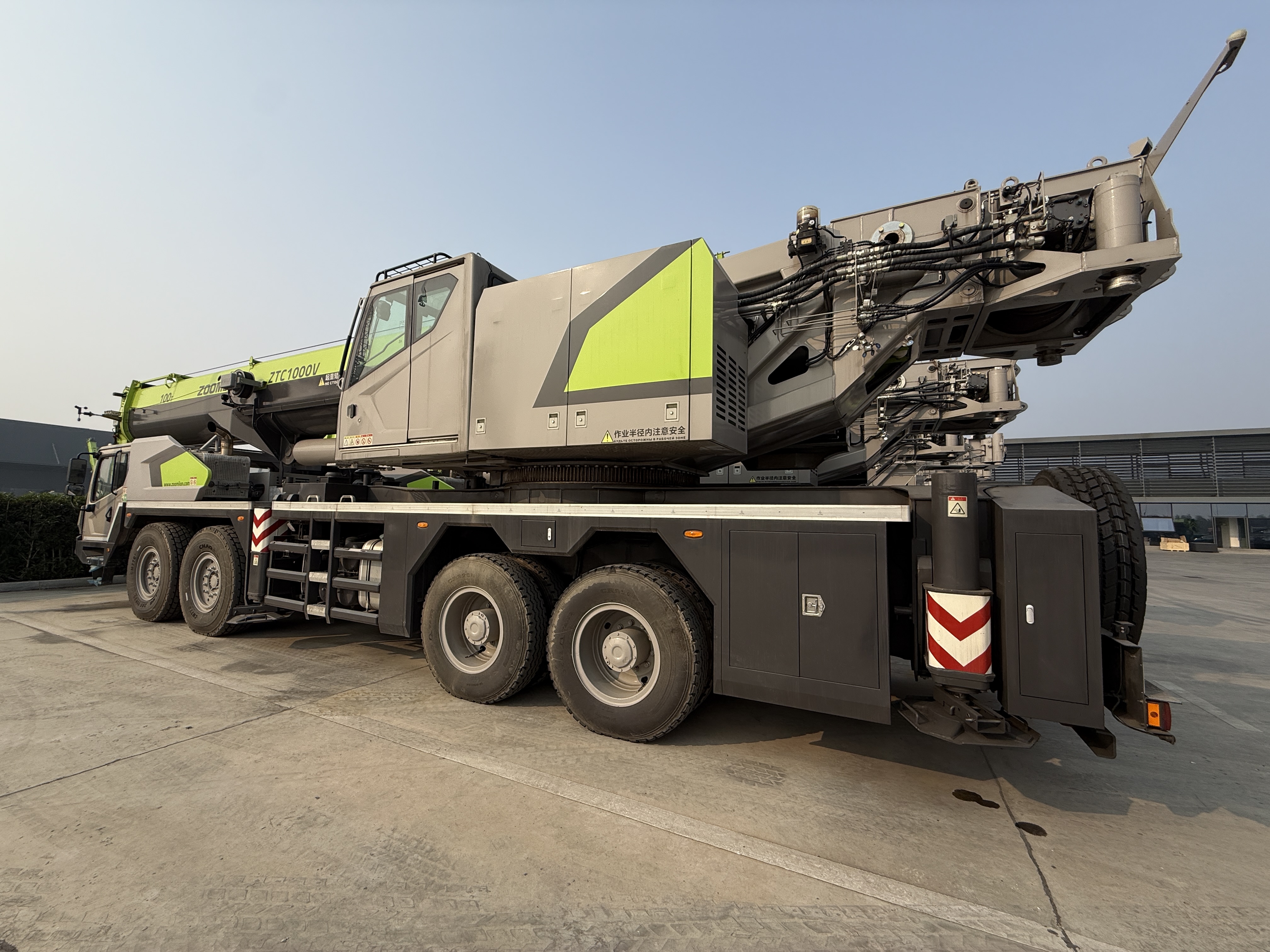

ZTC1000V ZOOMLION TRUCK CRANE
| Item | Value | Remarks | |
|---|---|---|---|
| Working Performance |
Max. rated lifting capacity kg | 110,000 | |
| Max. load moment of basic boom kN.m | 3,480 | ||
| Max. load moment of max. length main boom kN.m | 1,728 | ||
| Max. lifting height of basic boom m | 13.7 | ||
| Max. lifting height of main boom m | 59.2 | These parameters do not include deflection of boom and jib. | |
| Max. lifting height of jib m (optional: 7m extension) |
83.5 | ||
| Working Speeds |
Max. hoist rope speed (main winch) m/min | 140 | |
| Max. hoist rope speed (auxiliary winch) m/min | 130 | ||
| Boom derricking up time S | 60 | ||
| Boom telescoping out time S | 430 | ||
| Slewing speed r/min | 0 ~ 1.6 | ||
| Driving | Max. driving speed km/h | 90 | |
| Max. gradeability % | 40 | ||
| Min. turning diameter m | 23 | ||
| Min. ground clearance mm | 310 | ||
| Oil consumption per hundred kilometers L | 46 | ||
| Mass | Deadweight in driving condition kg | 50,000 | |
| Complete vehicle kerb mass kg | 49,805 | ||
| Front axle load kg | 24,000 | ||
| Rear axle load kg | 26,000 | ||
| Dimensions | Overall dimensions (L x W x H) mm | 15000 x 2850 x 3820 | |
| Longitudinal distance between outriggers m | 6.38 | ||
| Transversal distance between outriggers m | Completely extended: 8.0 | Intermediately extended: 5.3 | |
| Tail slewing radius mm | 4,420 | ||
| Main boom length m | 12.5 ~ 58.5 | ||
| Boom angle ° | -2 ~ 80 | ||
| Jib length m | 10.4 / 17.5 / 24.5 | Optional: 7m extension | |
| Offset ° | 0 / 15 / 30 | ||
| Tip boom length m | 3 | Optional | |
| Tip boom angle ° | 30 | ||
