ZTC1300VS863 ZOOMLION TRUCK CRANE
ZTC1300V863 — Technical Specifications
| Project | Value | Remarks | |
|---|---|---|---|
| Driving Status — Driving Condition | |||
| Weight | Total Quality in Driving State | 54,900 | kg |
| Axle Load per Bridge | 12000 / 12000 / 10450 / 10450 / 10000 | kg | |
| Shape | Overall Dimensions (L × W × H) | 17015 × 3000 × 4000 | mm |
| Power | Car Engine Model | WP12.460E62 | / |
| Rated Power of Engine | 338 / 1900 | kw / r/min | |
| Exhaust Emission Limit | Country VI | / | |
| Fuel Consumption per 100 km | VI = 55 | L | |
| Driving | Maximum Driving Speed | 80 | km/h |
| Maximum Gradient | 45 | % | |
| Minimum Turning Diameter | 24 | m | |
| Minimum Ground Clearance | 330 | mm | |
| Braking Distance | ≤ 10 | m | |
| Job Status — Status of Job | |||
| Main Performance | Maximum Rated Total Lifting Weight | 130,000 | kg |
| Maximum Lifting Torque of Basic Arm | 5,076 | KN.m | |
| Main Arm: Arm Length / Maximum Lifting Height | 88 / 88 | m | |
| Main & Auxiliary Arms: Arm Length / Maximum Lifting Height | 116.5 / 116.5 | m | |
| Main Arm Elevation Angle | -0.5 ~ 80 | ° | |
| Working Speed | Maximum Speed of Main Winch Single | 135 | m/min |
| Lifting Arm Extension Time | ≤ 880 | s | |
| Lifting Arm Lifting Time | ≤ 70 | ||
| Rotation Speed | ≤ 1.6 | r/min | |

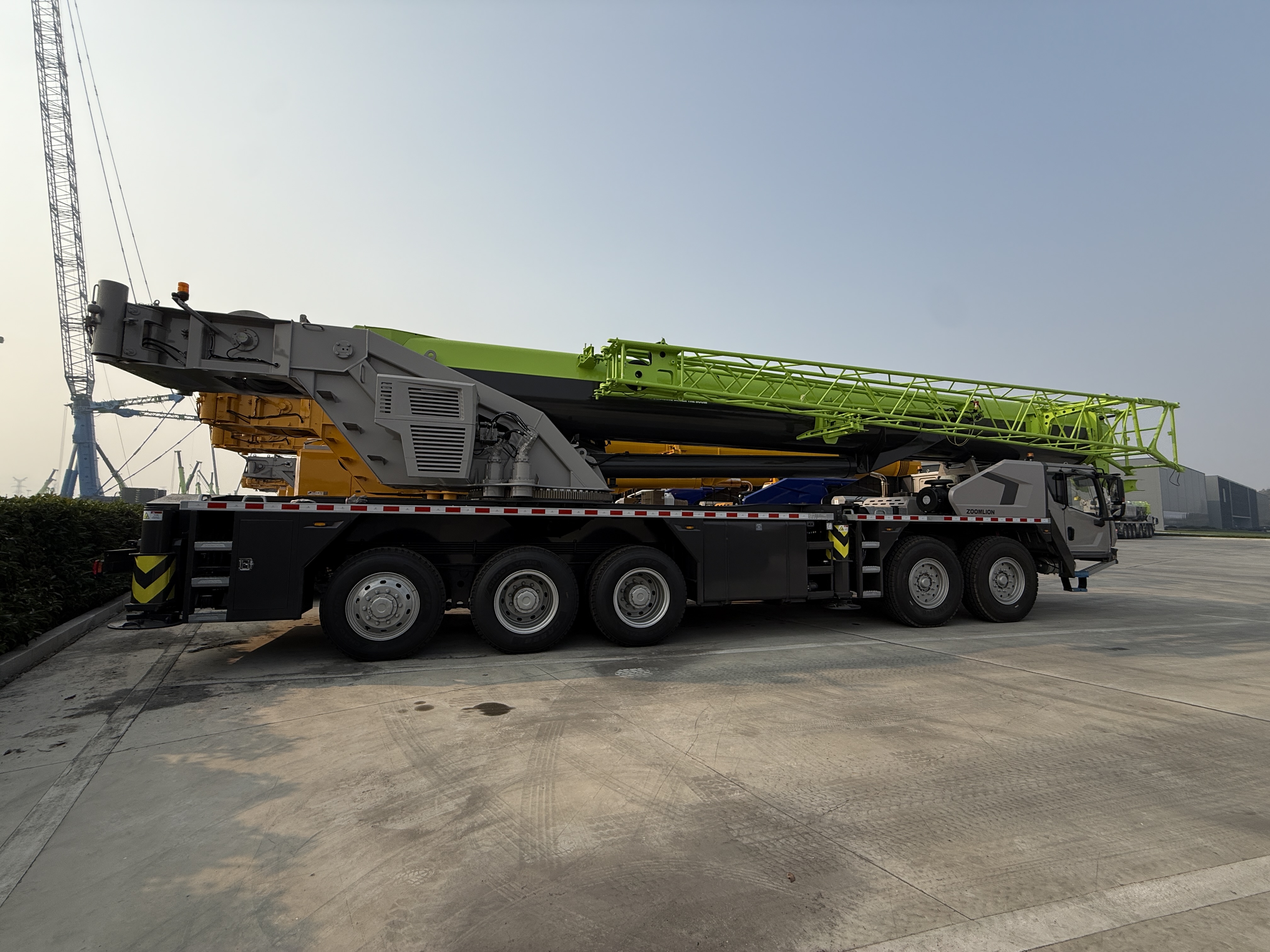

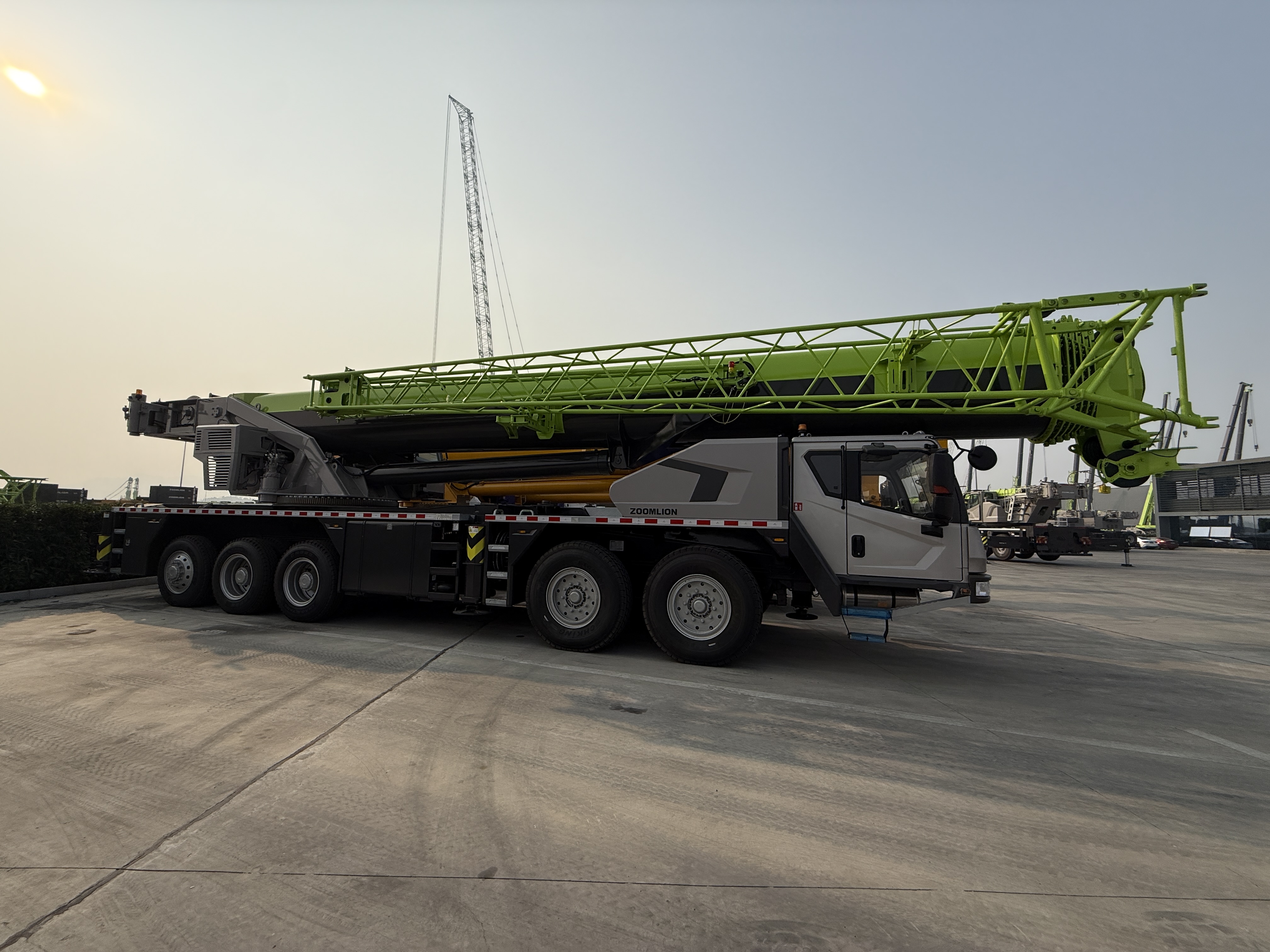

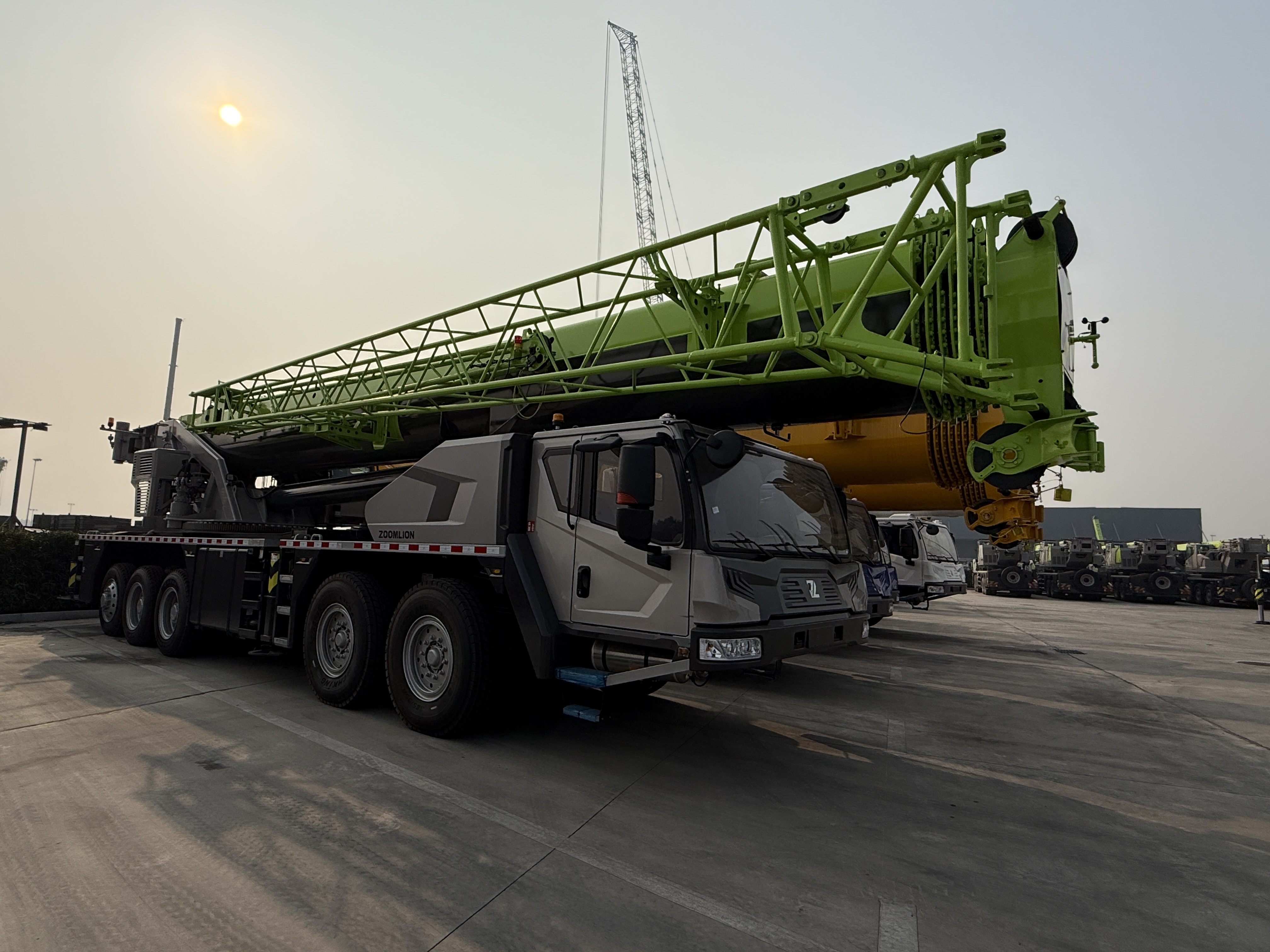

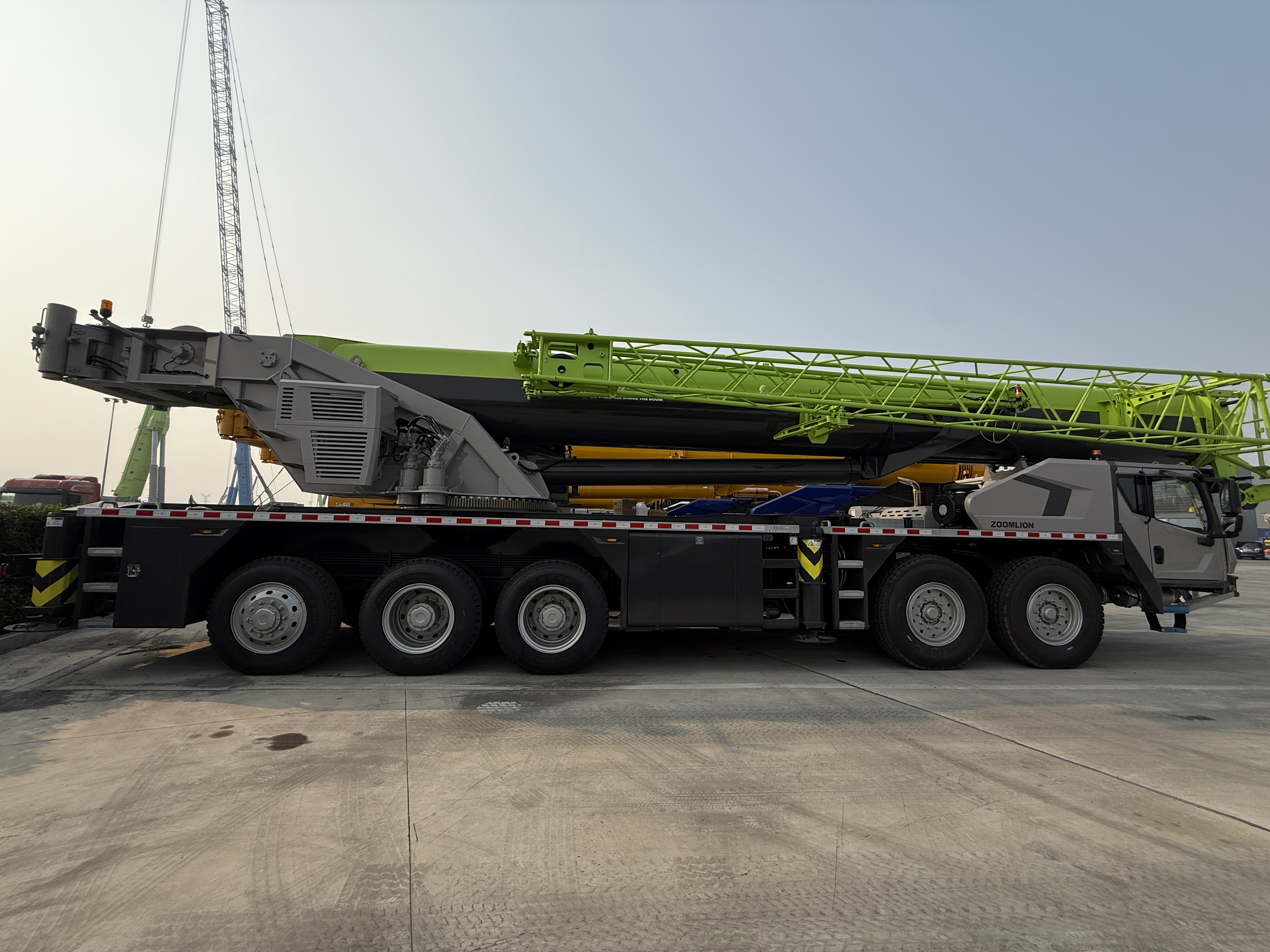

Product Gallery
