STC500C5-8 SANY TRUCK CRANE
Product Brief Description
The five-section boom of STC550C5-8 adopts high-strength steel structure and optimized U-shaped cross-section, which significantly reduces weight and has a higher safety rate. Jib mounting angles are 0°, 15°, and 30°, which ensures fast and convenient change-over between different operating conditions so as to improving the working efficiency of the machine.
Loading feedback of hydraulic system, constant power control, piston pump and the electrical control valve is applied to provide strong lifting capacity and good micro-mobility. A unique steering buffer design is adopted to ensure stable braking operation.
Parameter Specification
| Type | Item | Parameter | |
| Dimensions | Max. lifting capacity | 55 t | |
| Overall length | 14350 mm | ||
| Overall width | 2800 mm | ||
| Overall height | 3820 mm | ||
| Axle distance | Axle-1,2 | 1450 mm | |
| Axle-2,3 | 4000 mm | ||
| Axle-3,4 | 1350 mm | ||
| Weight | Overall weight | 43870 kg | |
| Axle load | Axle load-1,2 | 16000 kg | |
| Axle load-3,4 | 26000 kg | ||
| Engine | Rated power | 276 kW / 1900 rpm | |
| Rated torque | 1425 N·m / 1200 rpm | ||
| Travelling | Max. travelling speed | 85 km/h | |
Key Features
Excellent performance, structural 3.0 platform
- The third-generation hybrid frame structure is fully applied, the frame cross-sectional area is increased by 5%, the frame bearing capacity is increased by 10%, and the deformation is reduced by 15%.
- The main arm cross-sectional size is the best in the industry, and the response surface technology simulation optimization analysis has reduced the full-extended arm deflection by 37%, and the high-frequency performance has been improved by 5%.
Energy saving and consumption reduction i-ECO 1.0 system
- Non-sensing regeneration technology (exclusive to Yuchai version), engine speed self-matching to clear carbon deposits, achieving long-term operation without stopping.
- i-ECO fuel-saving technology, matching engine torque based on operation needs, improving energy utilization, and reducing operating fuel consumption by 20%.
Leading control i-EHC 2.0 system
- Electro-hydraulic composite control system, with both response speed and accuracy, and upgraded controllability.
- Pressure adaptive telescopic technology, upgraded boom telescopic stability, small impact when the arm is started in place, solving the problem of shaking when the arm is retracted at a small opening.
Intelligent and comfortable i-Crane intelligent crane
- It is safer, and the hoisting accuracy is revolutionary improved, with a 50% increase in amplitude and weight accuracy, leading the industry.
- Standard fault diagnosis, maintenance reminders, working condition recommendations and other technologies to help facilitate hoisting.

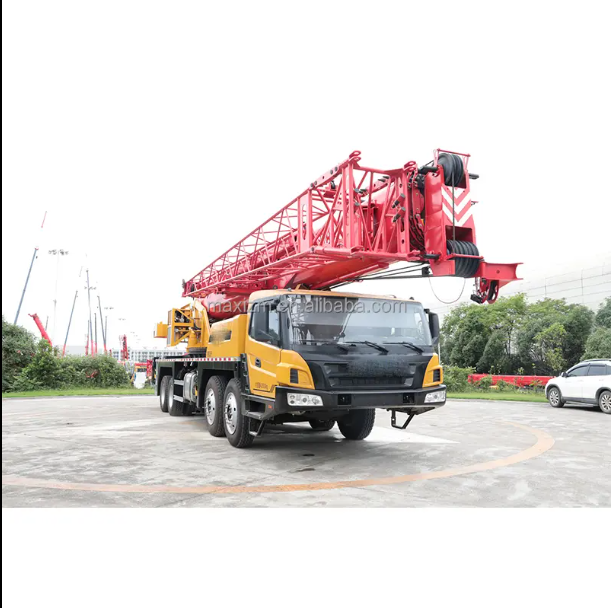

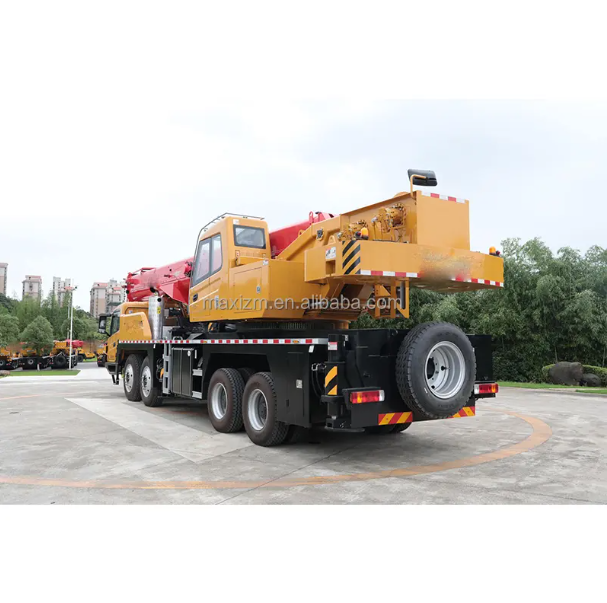

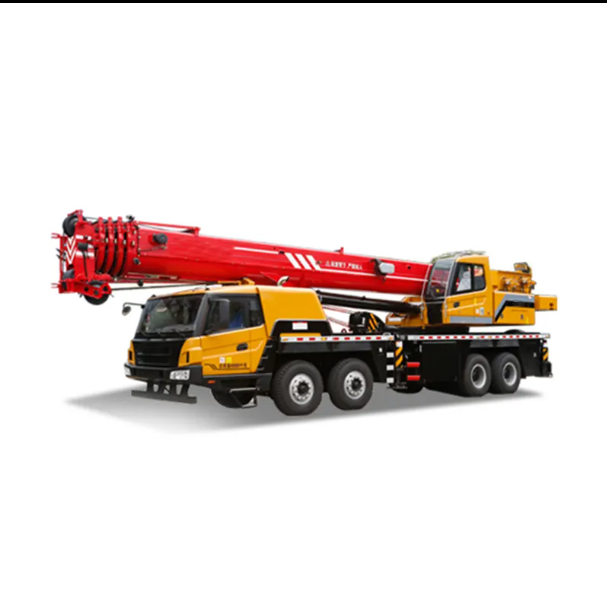

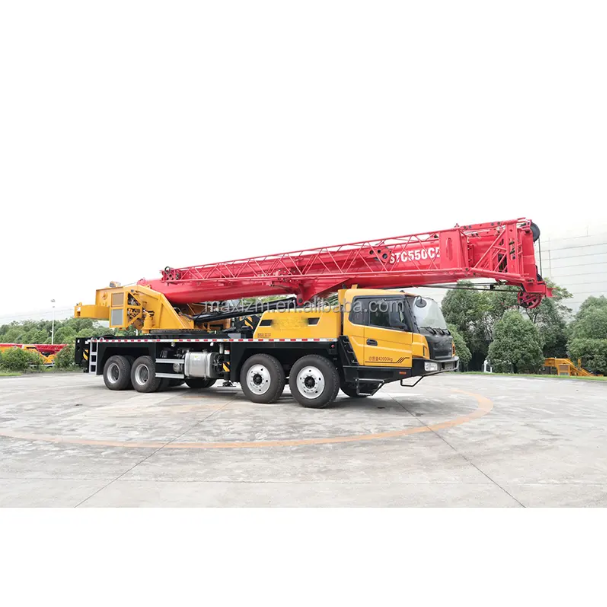

Product Gallery
