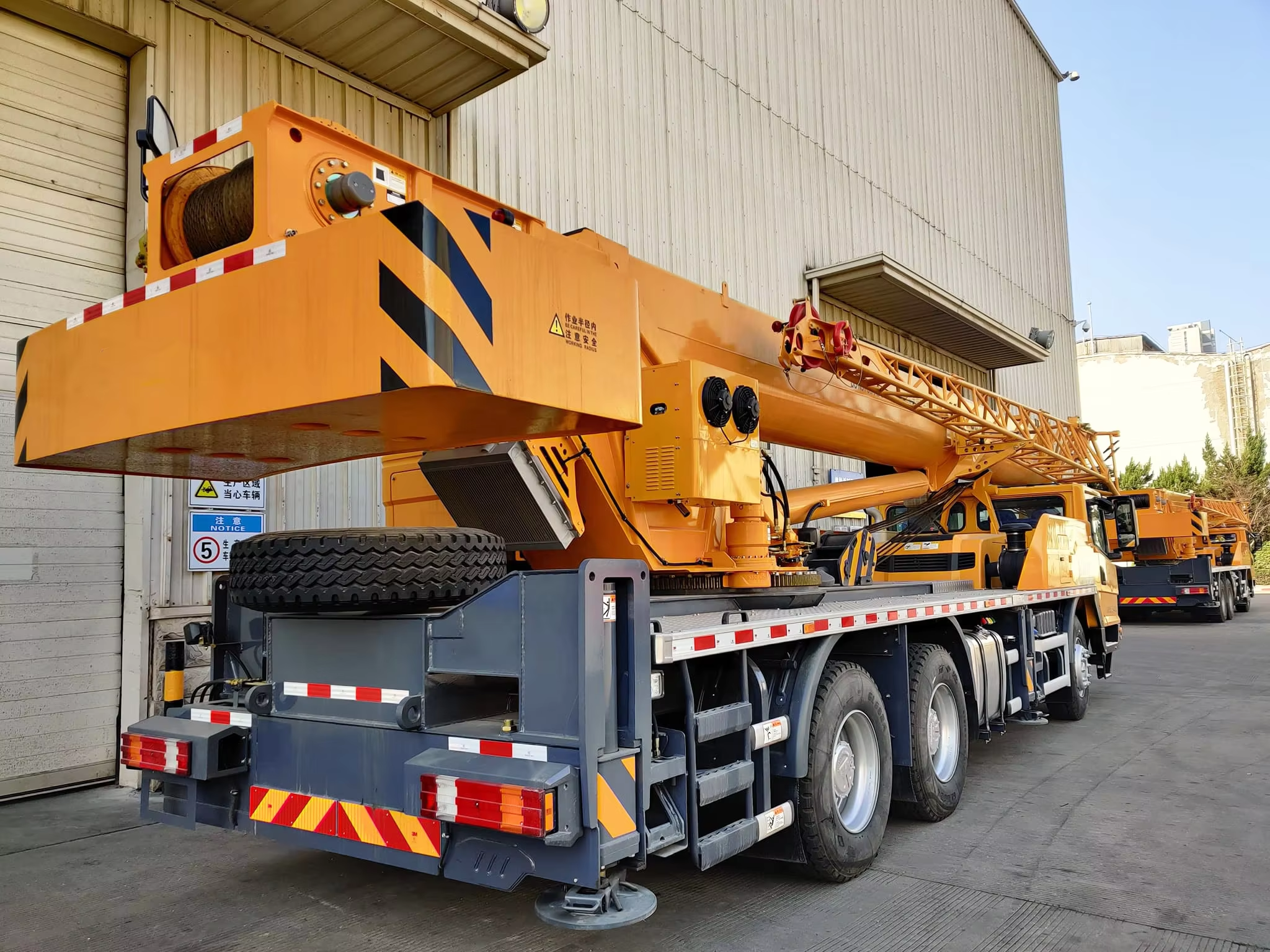

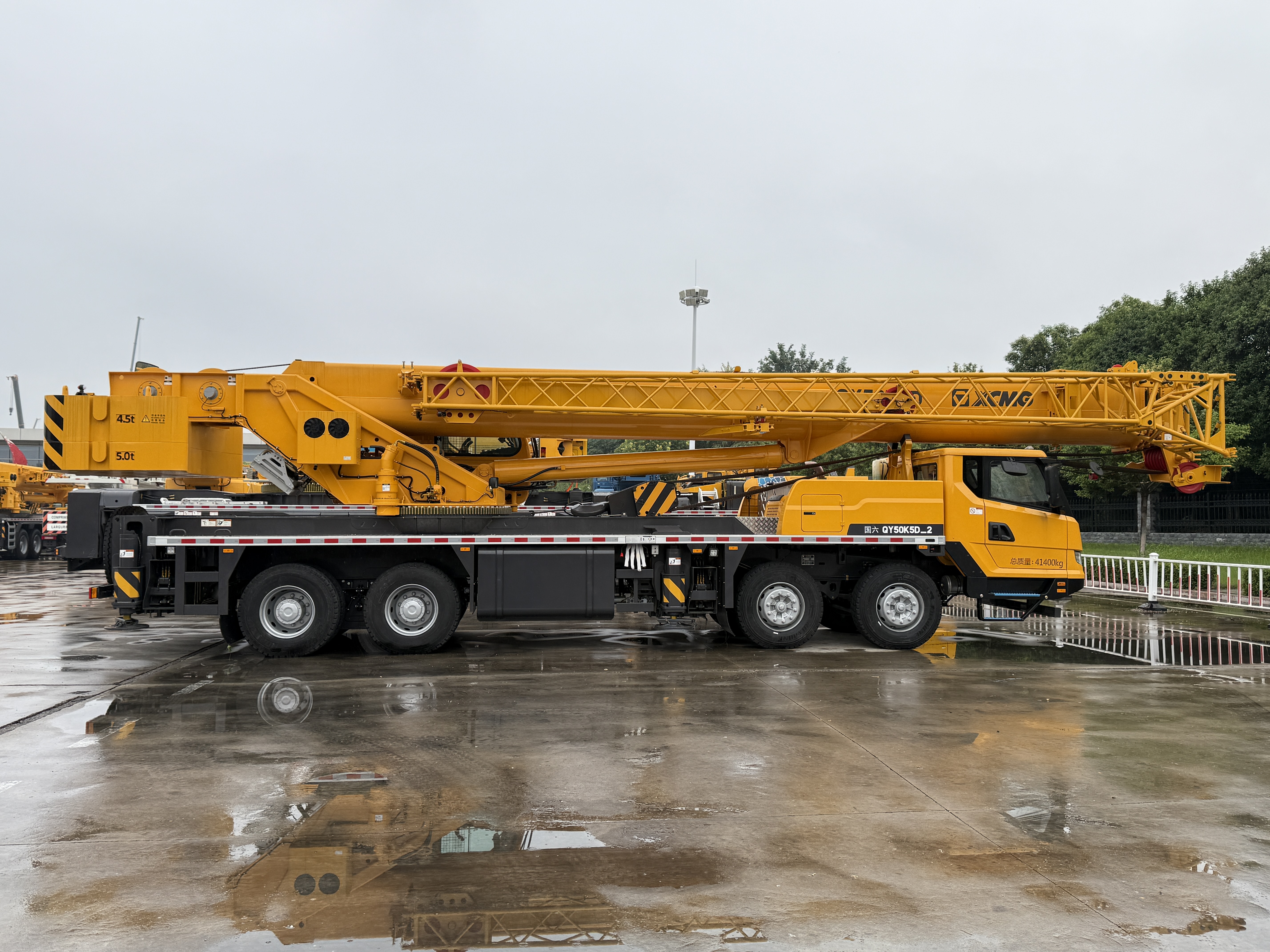

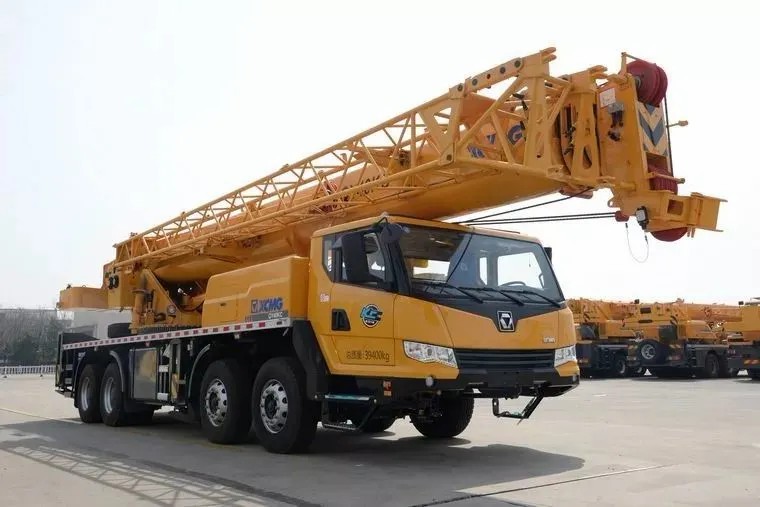

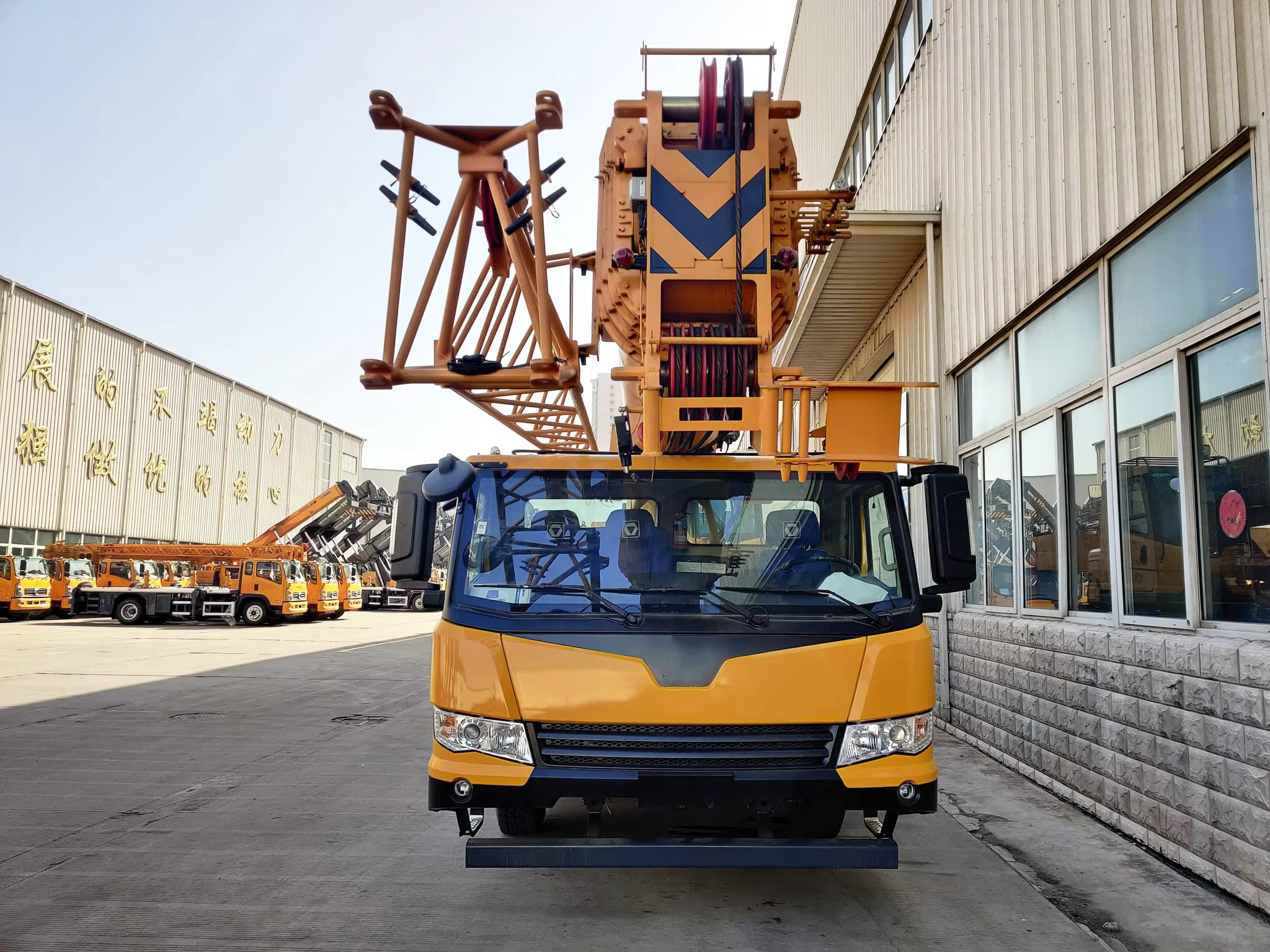

QY100K5C XCMG TRUCK CRANE
| Table of Main Technical Parameters | ||||
| Category 类别 |
Item 项目 |
Unit 单位 |
Parameter 参数 |
|
| Dimensions 尺寸参数 |
Dimensions (length×width×height) 外形尺寸(长×宽×高) |
mm | 14985×2800×3886 | |
| Wheel base 轴距 |
mm | 1500+4500+1350 | ||
| Track (Front/Rear) 轮距(前/后) |
mm | 2400/2400/2063/2063 | ||
| Front/Rear overhang 前悬/后悬 |
mm | 2540(齐星)、2525(徐工汽车)/2517 | ||
| Front/Rear extension 前伸/后伸 |
mm | 2248(齐星)、2263(徐工汽车)/330 | ||
| Weight 重量参数 |
Max. permissible weight 最大允许总质量 |
kg | 49600 | |
| Axle load 轴荷 |
1st axle 一轴 | kg | 11800 | |
| 2nd axle 二轴 | kg | 11800 | ||
| 3rd axle 三轴 | kg | 13000 | ||
| 4th axle 四轴 | kg | 13000 | ||
| Power 动力参数 |
Engine model 发动机型号 |
—— | WP10H400E62 | |
| Engine rated power/rpm 额定功率/转速 |
kW/(r/min) | 294/1900 | ||
| Max. net power/rpm 最大净功率/转速 |
kW/(r/min) | 289/1900 | ||
| Max. output torque/rpm 最大输出扭矩/转速 |
N.m/(r/min) | 1900 / 1200-1300 | ||
| Travel 行驶参数 |
Max. travel speed 最高车速 |
km/h | ≥80 | |
| Min. stable travel speed 最低稳定车速 |
km/h | 2.5～3 | ||
| Min. turning diameter 最小转弯直径 |
m | ≤24 | ||
| Min. turning diameter at boom tip 臂头最小转弯直径 |
m | ≤30 | ||
| Min. ground clearance 最小离地间隙 |
mm | 260 | ||
| Approach angle 接近角 |
o | 11(18拆除前防护) | ||
| Departure angle 离去角 |
o | 11 | ||
| Braking distance (at 30 km/h) 制动距离(制动初速度为30km/h) |
m | ≤10 | ||
| Max. grade ability 最大爬坡能力 |
% | 47 | ||
| Fuel consumption per 100 km 百公里油耗 |
L | 44 | ||
| Noise 噪音 |
Exterior noise level when accelerating 加速行驶机外噪声 |
dB(A) | ≤84 | |
| Noise level at seated position 驾驶员耳旁噪声 |
dB(A) | ≤90 | ||
