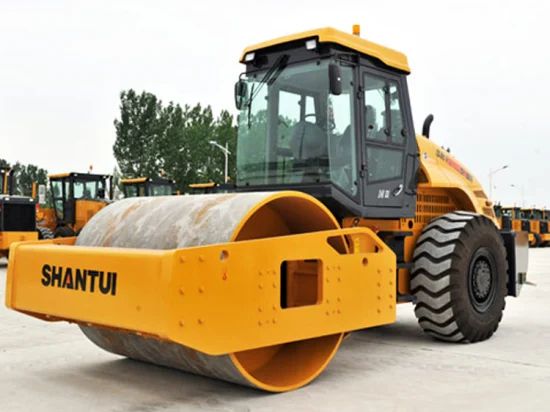

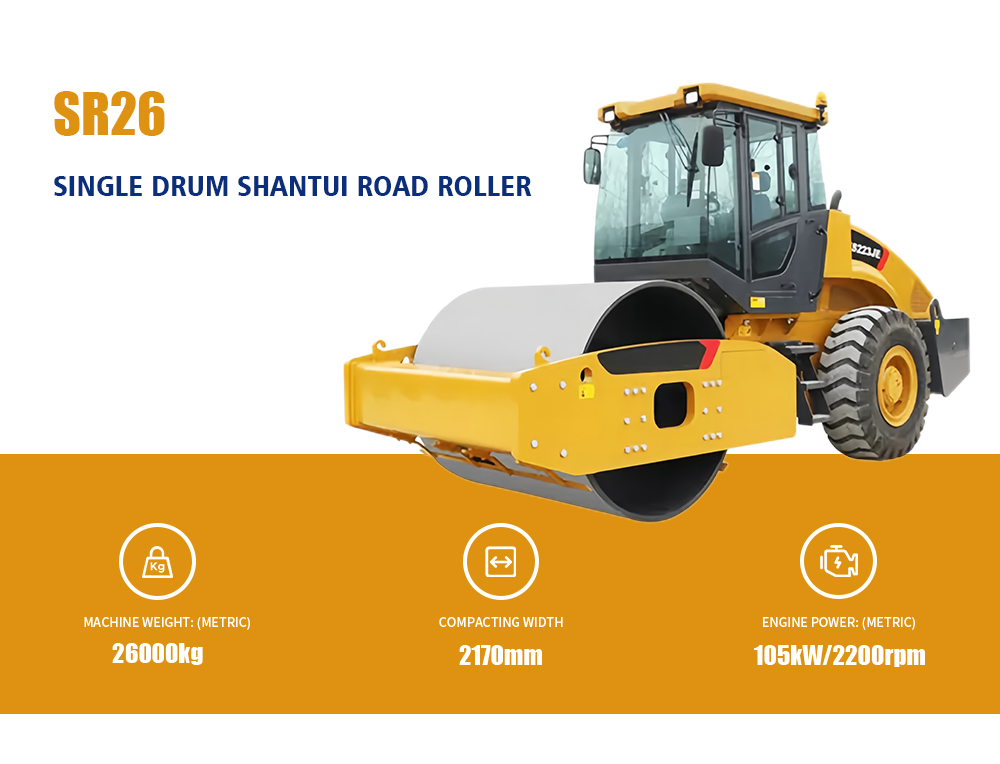

SR26 Shantui Road Roller Single Drum
Product features
SR26 Shantui Road Roller Single Drum
High Safety and Comfort
● The whole machine adopts three-level shock absorption, special sealing, low vibration and low noise;
● The cab dashboard, seat and control box are arranged in combination with ergonomics for comfortable operation;
● Fully hydraulic drive, four-speed stepless speed change, simple operation.
High Flexibility and Usability
● The fuel filter element and hydraulic filter element are arranged on the same side of the machine, which is easy to maintain;
● Easy maintenance, daily maintenance can be done conveniently by opening the hood;
● The pipes for draining water from the water tank and draining oil from the oil pan are led to the outside of the machine body for easy maintenance;
● Intelligent combination instrument with automatic fault detection function, with all-weather, all-round fault diagnosis and alarm system.
Working Performance
● Weichai WP6 engine has good fuel economy, strong parts versatility and low maintenance cost;
● Suction-type large-area radiator, effectively extending the service life of the engine and hydraulic components;
● Shantui’s proprietary technology steel wheels, bearing independent lubrication, long life.
Operating Cost
● Exclusive matching technology can achieve high work efficiency and reasonable fuel economy, and comprehensive fuel consumption can be reduced by 8%~10%;
● Imported core electric hydraulic components, high quality and reliability, reducing downtime.
Parameter
| Parameter name | SR26-C5 |
| Performance parameters | |
| Operating weight (Kg) | 26000 |
| Exciting force (KN) | 500/365 |
| Vibration frequency (Hz) | 35/29 |
| Nominal amplitude (mm) | 2.0/1.0 |
| Gradeability (%) | 30 |
| Engine | |
| Engine model | Weichai WP6 |
| Rated power/rated speed (kW/rpm) | 105/2200 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 6680*2440*3160 |
| Driving performance | |
| Forward speed (km/h) | 4.1/5.3/5.8/9.5 |
| Reversing speed (km/h) | 4.1/5.3/5.8/9.5 |
| Chassis System | |
| Wheelbase (mm) | 3360 |
| Tank capacity | |
| Fuel tank (L) | 300 |
| Working device | |
| Compacting width（mm） | 2170 |
